ACCESS & SERVICE HATCHES

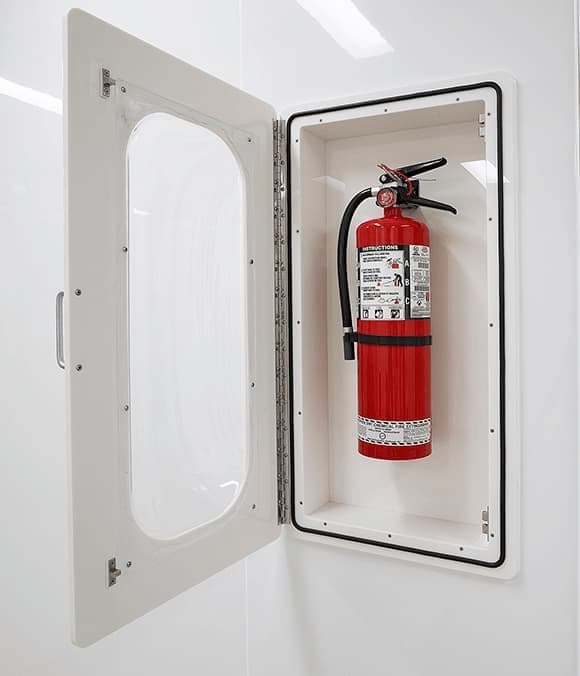

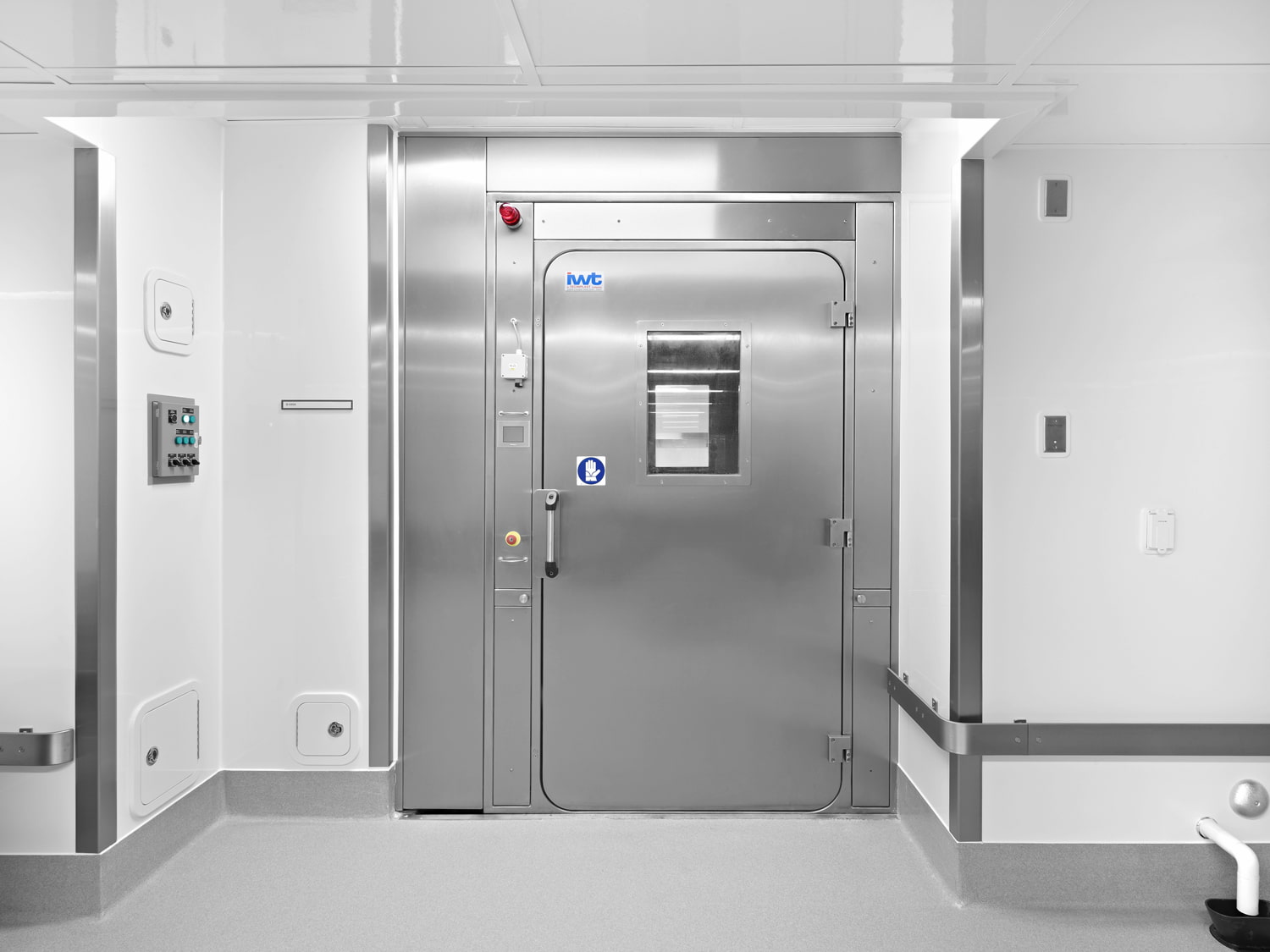

Arcoplast Access or Service hatches range in size, shape and function. Some service hatches are fitted with an enclosure shell for housing devices, with these type of hatches the primary barrier is maintained, regardless if the hatch door is open or closed.

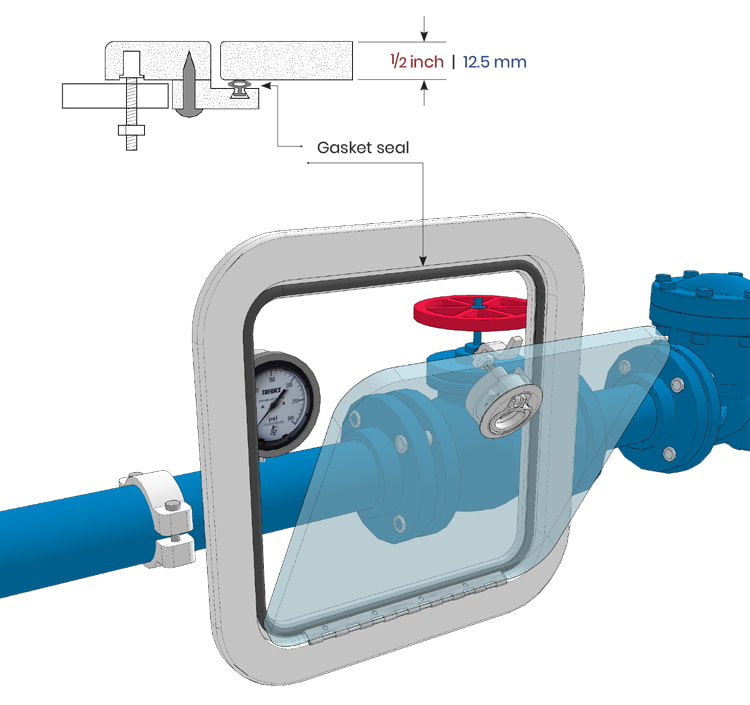

Access hatches allow entry into a wall cavity or the interstitial space of a ceiling. When the hatch door is closed, the hatch door seal ensures the primary barrier is maintained up to BSL-3.
Most Arcoplast hatches can be fitted with a viewing window for real-time equipment monitoring. Hatches can be purpose or retrofitted into walls, ceilings, and Arcoform protective shrouds such as bulkheads, fascias, or utility chases.
The hatch door can be fitted with a clear, high impact, abrasive resistant polycarbonate window designed for 24-7 monitoring of gauges and visual inspections.

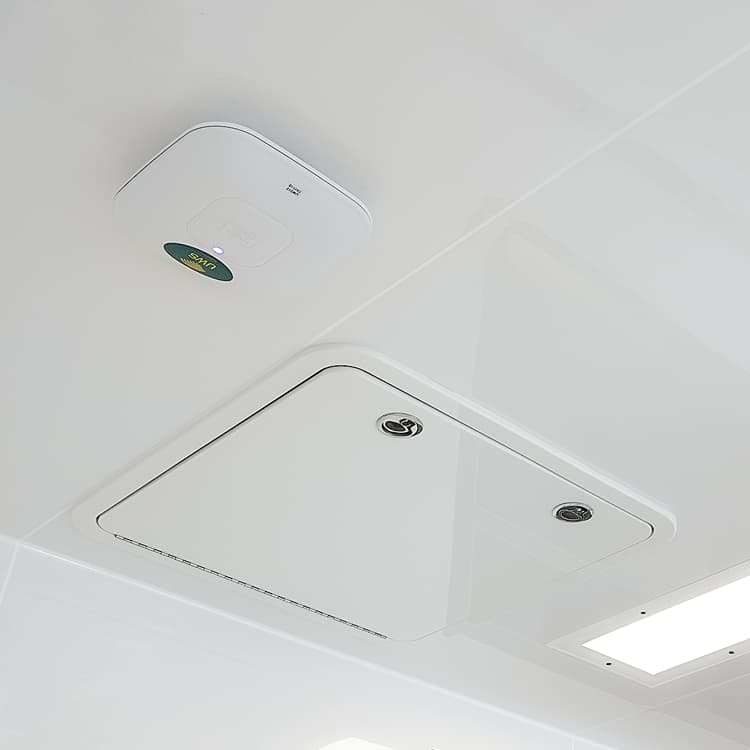

The orientation of the hatch can be vertical or horizontal. The hatch door swings on a continuous stainless steel hinge. A pair, or single set of stainless steel low profile compression pull latches secure the hatch.
For secure access areas, a compression pull key locking latch is available.
Arcoplast Access and Service hatches are integrated into the primary barrier using A-2020 structural adhesive, 4 hours latter, A-1010 Bio-Seal is used to seal and finish the seam joints.

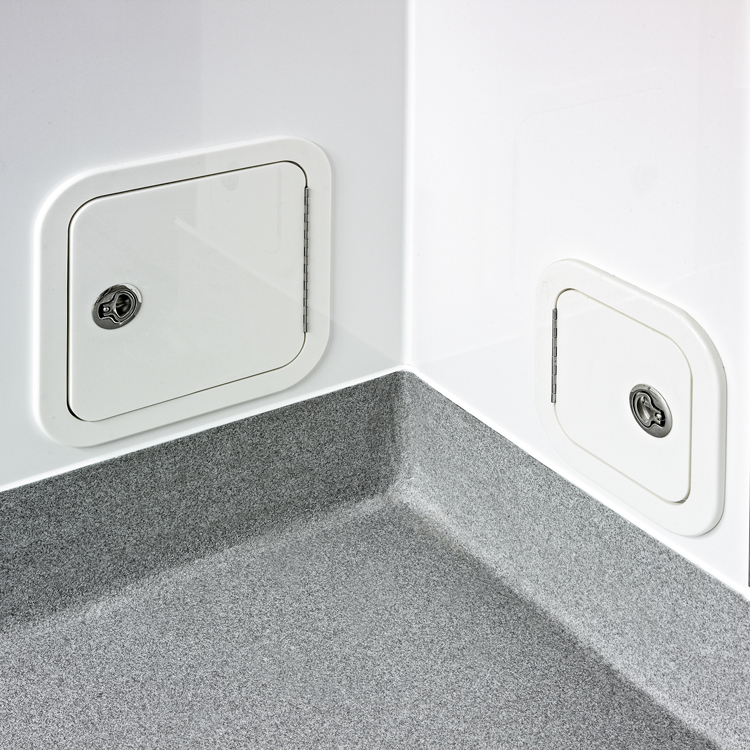

Arcoplast Access and Service hatches are designed to be wall or ceiling mounted, and are available in a range of sizes.
| Access Hatch Dimensions | Service Hatch Dimensions | ||
|---|---|---|---|
| 24 x 24 inch | 609 x 609 mm | 8 x 8 inch | 203 x 203 mm |
| 24 x 36 inch | 609 x 915 mm | 12 x 12 inch | 305 x 305 mm |
| 24 x 48 inch | 609 x 1220 mm | 16 x 16 inch | 406 x 406 mm |
| 24 x 60 inch | 609 x 1525 mm | 20 x 20 inch | 508 x 508 mm |
| Pressure held 20 minutes before test readings | psf | Pa | Imperial | Metric |
|---|---|---|---|---|
| Air leakage: Infiltration per ASTM E328 | 4.18 psf | 200 Pa | 0.28 cfm/ft² | 1.4 L/S/m² |
| Air leakage: Infiltration per ASTM E328 | 10.44 psf | 500 Pa | 0.70 cfm/ft² | 3.6 L/S/m² |
| Air leakage: Infiltration per ASTM E328 | 4.18 psf | 200 Pa | 0.04 cfm/plm | 0.06 L/S per linear m |
| Air leakage: Infiltration per ASTM E328 | 10.44 psf | 500 Pa | 0.09 cfm/plm | 0.14 L/S per linear m |

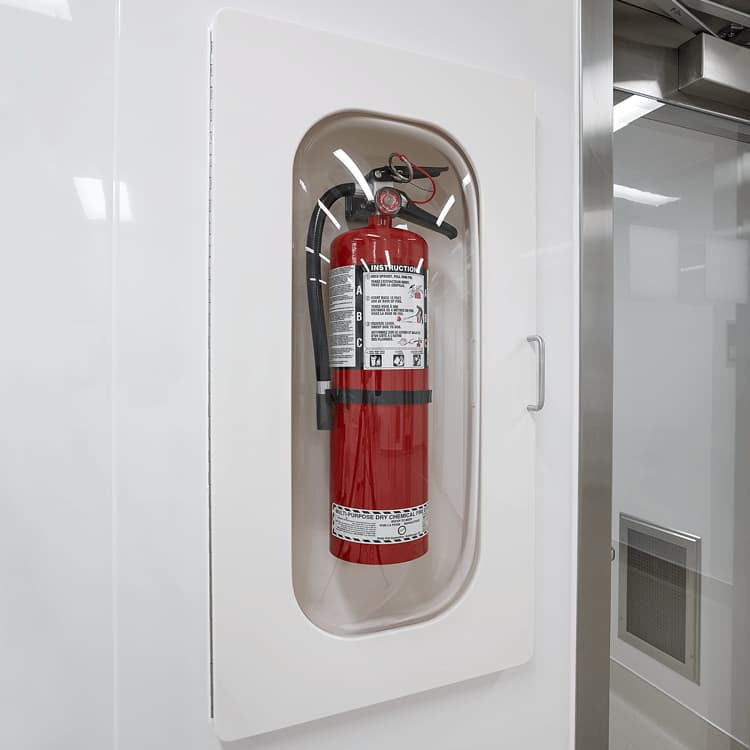

WINDOW SERVICE HATCH
There are different types of windows for the various styles of hatches. Some are curved, some are flat.

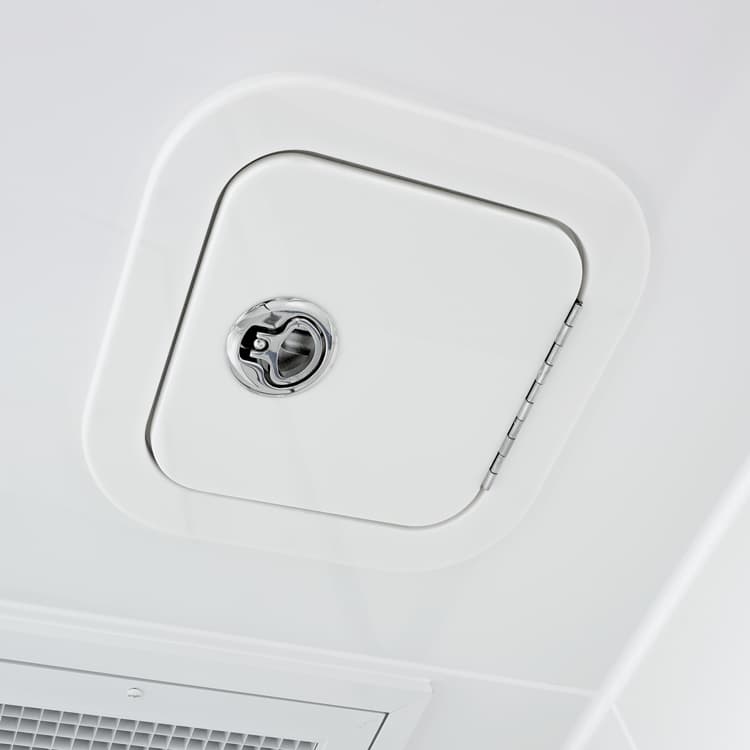

SINGLE LATCH SERVICE HATCH
All Arcoplast Hatches form a phymatic seal when closed.

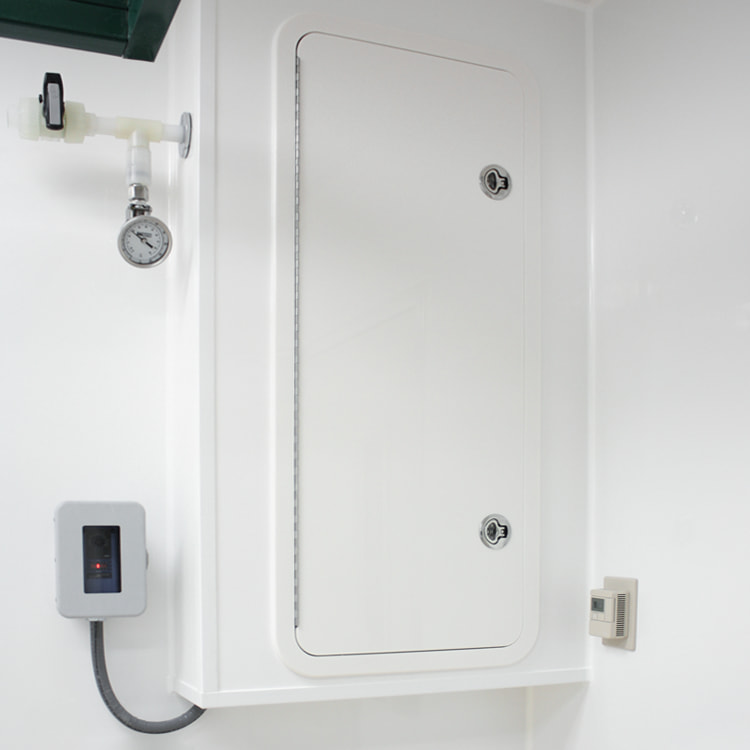

DOUBLE LATCH SERVICE HATCH
Arcoplast Hatches are available in most PMS colors, the standard color is Pristine white.

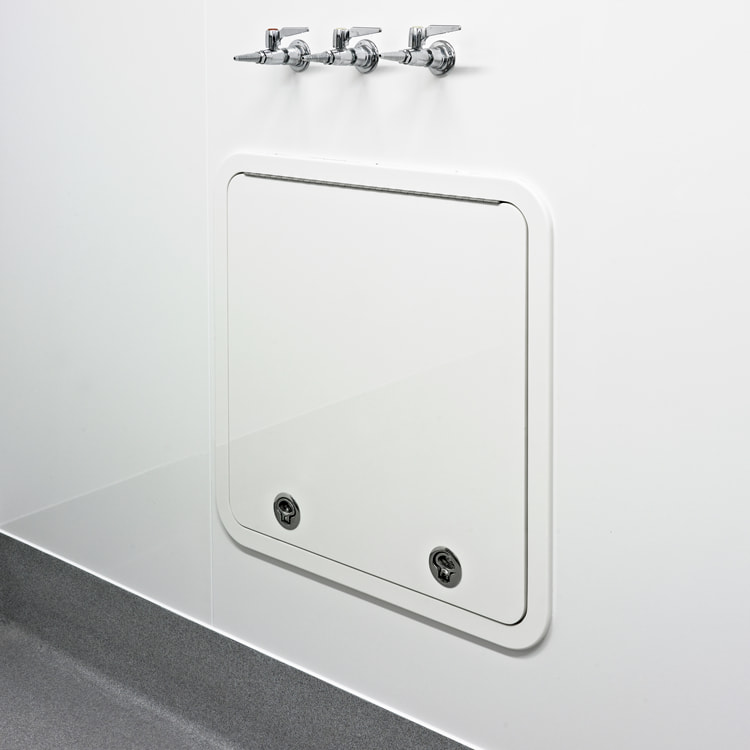

CLEANING ARCOPLAST HATCHES
Arcoplast Hatches are designed & manufactured to endure the same cleaning regimes for all of the Arcoplast Single Membrane Primary Barriers.
ARCOPLAST SERVICE HATCHES
Arcoplast Hatches are designed to be installed during the build or retro installed.
SECURITY HATCHES
Arcoplast Hatches can be setup with a keypad and alarm activation sensor.
