Certification Description : Arcoform shrouds Result
Leef Logo
Logistical economic environmental footprint ✓
Compliance Standards Results
Compliant BSL-2, up to not including BSL-3 ✔
Compliant CL 2, up to not including CL 3 ✔
Compliant PC2, up to not including PC3 ✔
Compliant USP 797-800 ✔
Compliant Canada agriculture ✔
Compliant CDC : BMBL 6th edition ✔
Compliant FDA ✔
Compliant NIAD ✔
Compliant NIH ✔
Compliant USDA ✔
CSI Product Guide specification written according to CSI 3part format ✔
NYC Building Toxicity test MEA 64-96M, City of New York Department of Building ✔
Seismic Category A B : Please note, always consult local building authorities for specific regulations. ✔
VOC Report V1NNW211GC-Rev-3(S2) : After 72 hours no VOCs detected ✔



ARCOFORM : Profile

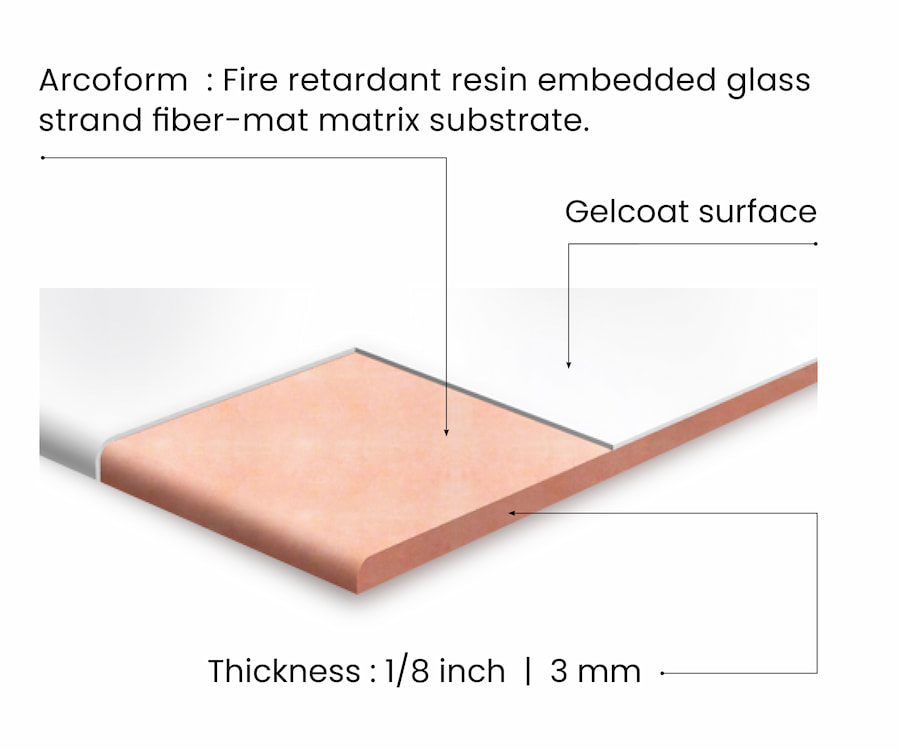

Arcoform decription detail



Arcoform standard profiles : Beam & Column covers, bulkheads, soffits, fascias, utility chases. Arcoform custom profiles are made to specification and have almost unlimited design possibilities.

Density ft3 : 2 pounds M3 : 0.0566337 Kg
Thickness 1/2 inch = 0.28 lb/ft2 12.5 mm = 1.365 Kg/Sq M
Weight 1/2 -2 inch 12.5 -50 mm
R Value Per inch = R-6.56 Per 25.5 mm = R-6.56

R Value : Relates to factory fitted insulation or insulation applied on-site, as per square inch

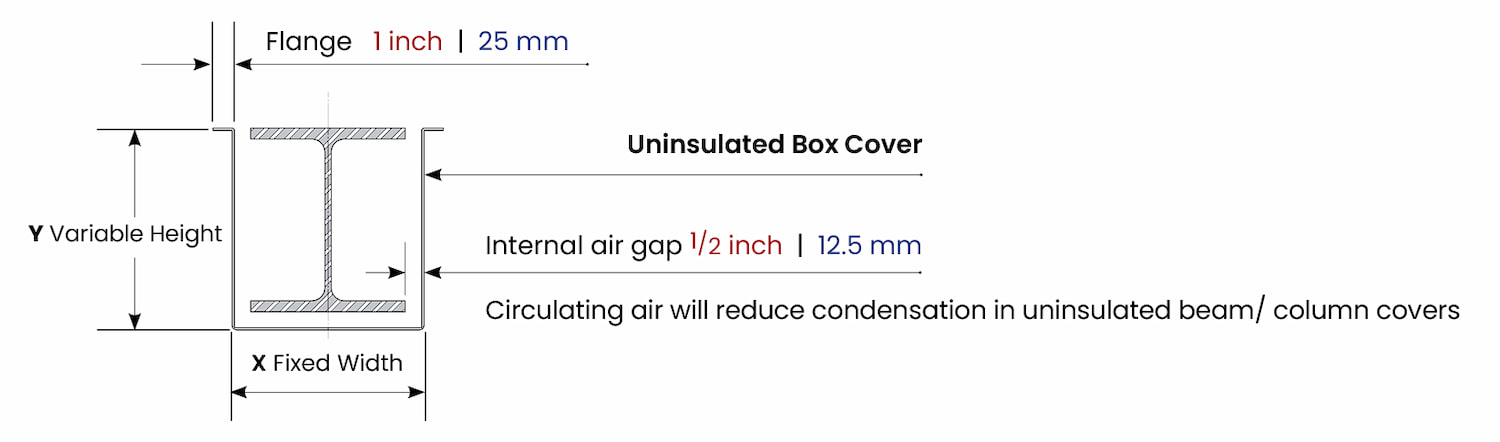

Box beam, column covers | Insulation & dimensions

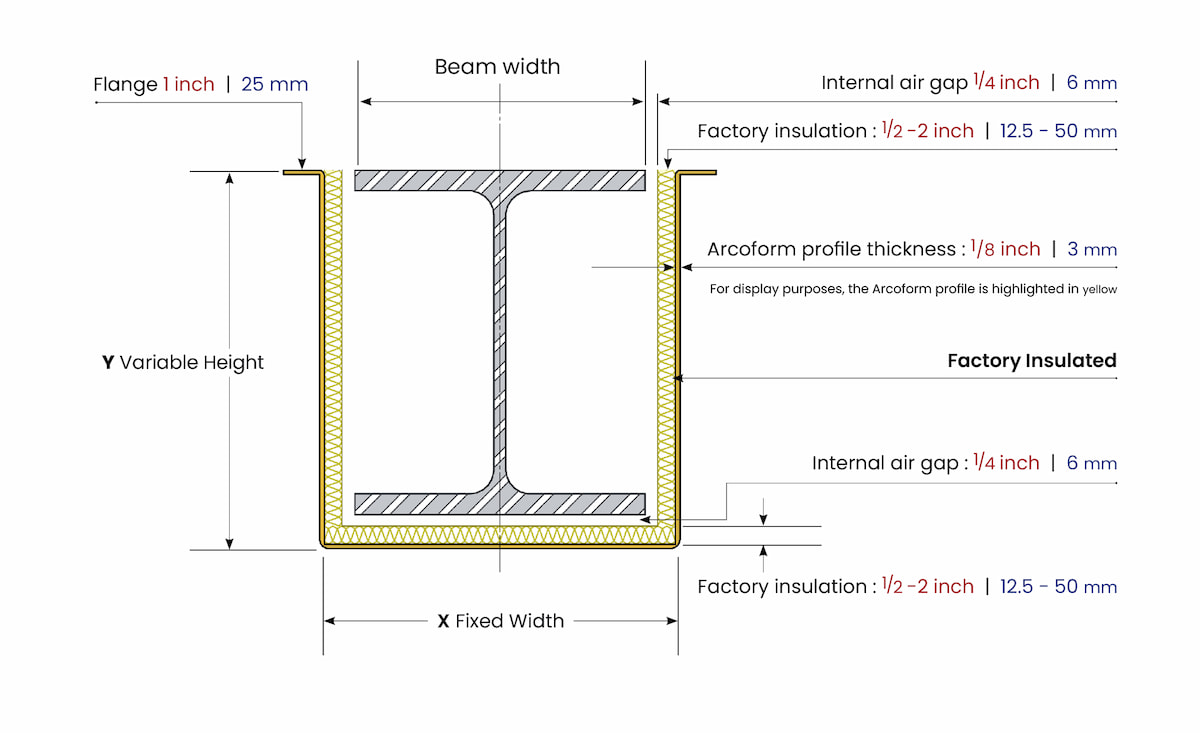

Arcoform Box Beam and Column cover
Arcoform : Insulated/ Uninsulated Box beam column cover dimensions



Arcoform profile Width X Fixed Height Y Variable Length manufactured
Box cover 6 inch 152 mm 1 - 6 inch 25 - 152 mm 12 feet 3658 mm
Box cover 6 inch 152 mm 1 - 12 inch 25 - 305 mm 12 feet 3658 mm
Box cover 10 inch 254 mm 1 - 10 1/2 inch 25 - 254 mm 12 feet 3658 mm
Box cover 16 3/4 inch 425 mm 1 - 12 1/2 inch 25 - 317 mm 10 feet 3048 mm



Arcoform : Standard and Modified Box beam - column covers



Arcoform Beam and Column cover



MODIFIED BEAM COVER : Arcoform beam/ column covers are able to be modified to fit the various depths of beams & columns.

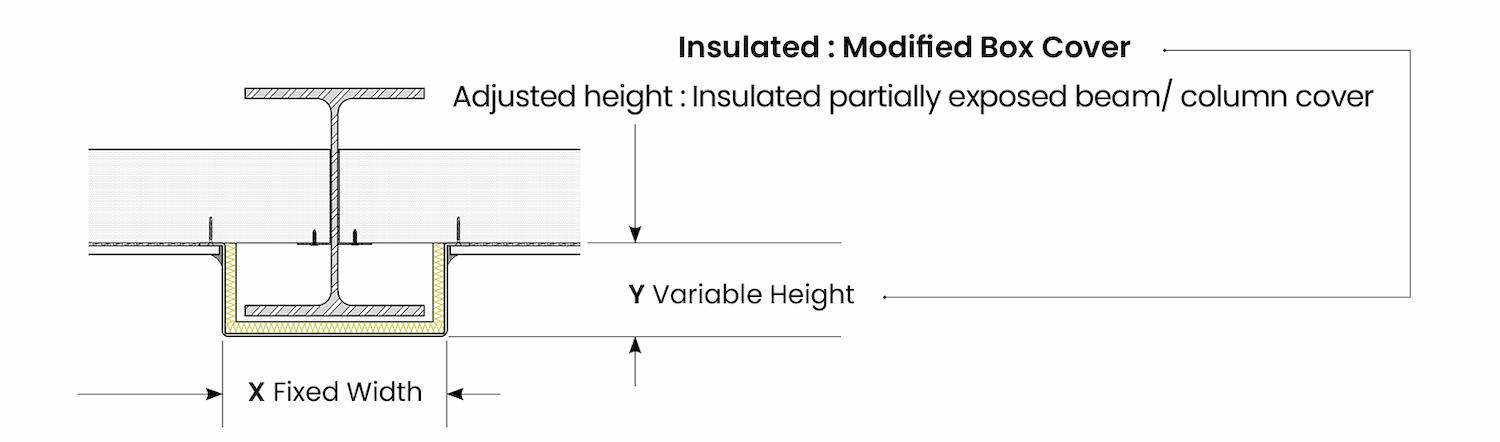

Arcoform Insulated Beam and Column cover



Arcoform : Beam, Column cover with extras

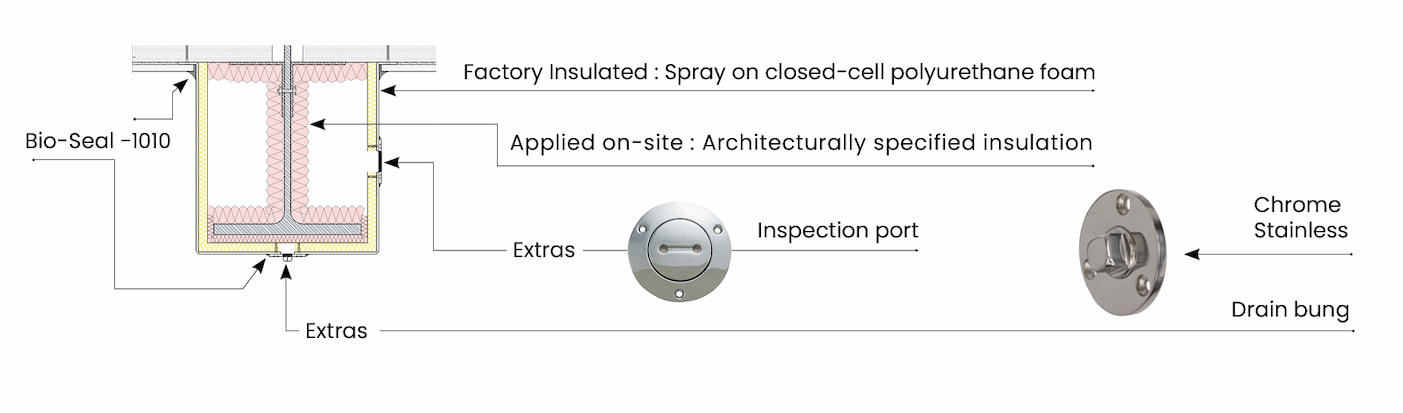

Arcoform Factory Insulated Beam and Column cover

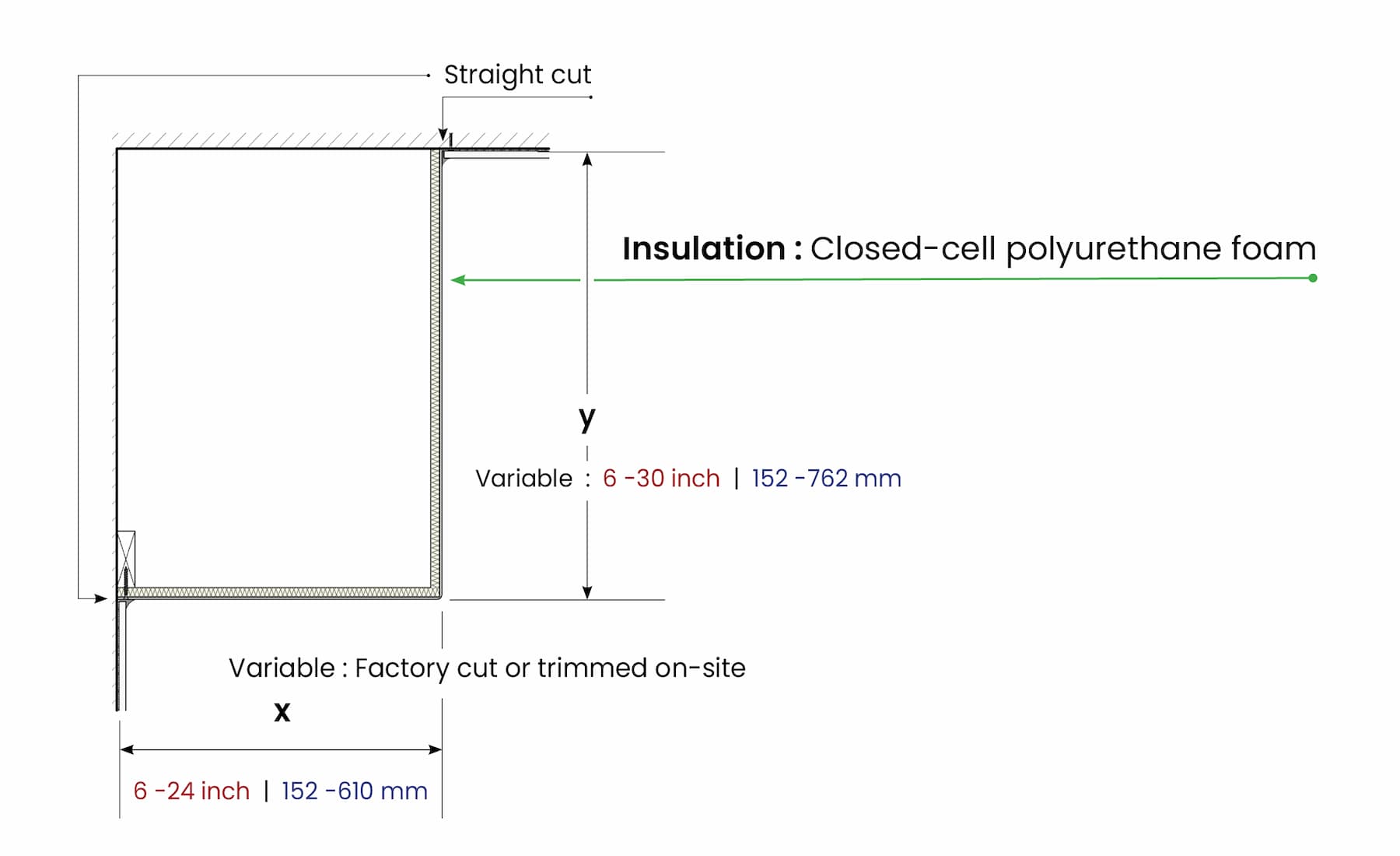

Arcoform : Corner cover
Arcoform Corner cover
Arcoform profile Width X Variable Height Y Variable Length manufactured
Corner cover 6 - 24 inch 152 - 610 mm 6 - 30 inch 152 - 762 mm 12 feet 3658 mm



Factory fitted insulation : Closed-cell polyurethane foam

Density ft³ : 2 pounds M³ : 0.0566337 Kg
R-value Per inch = R-6.56 Per 25.5 mm = R-6.56
Thickness 1/2 - 2 inch 12.5 - 50 mm
Weight 1/2 inch = 0.28 lb/ft² 12.5 mm = 1.365 Kg/Sq M





Arcoform : Tapered Box beam - column covers

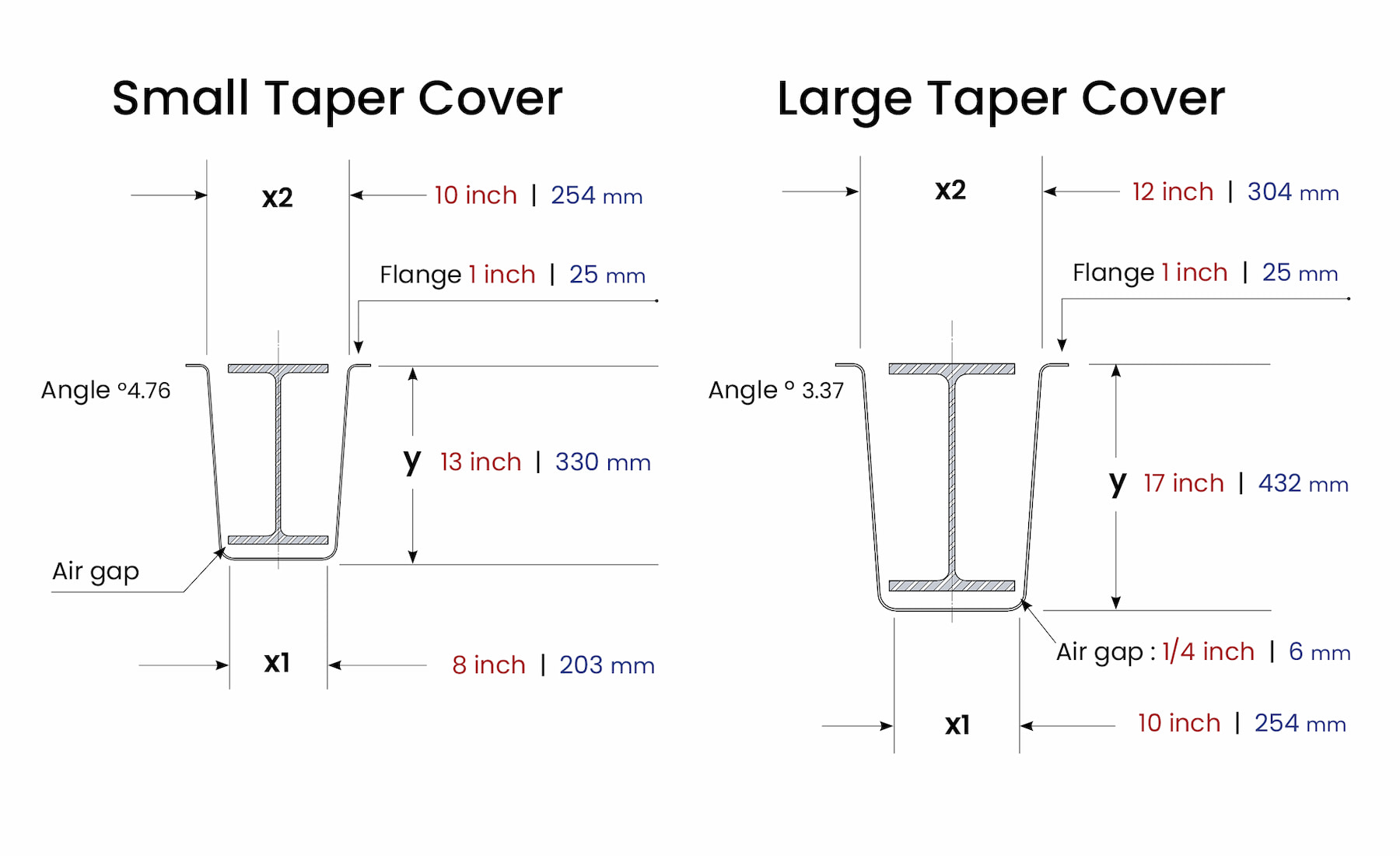

Arcoform Tapered Box cover
Small Taper Cover X Width : Fixed Y Height : Fixed Length manufactured
Dimensions X1 :   8 inch
X2 : 10 inch		 X1 : 203 mm
X2 : 254 mm		 13 inch 330 mm 12 feet 3658 mm

Large Taper cover X Width : Fixed Y Height : Fixed Length manufactured
Dimensions X1 : 10 inch
X2 : 12 inch		 X1 : 254 mm
X2 : 304 mm		 17 inch 431 mm 12 feet 3658 mm



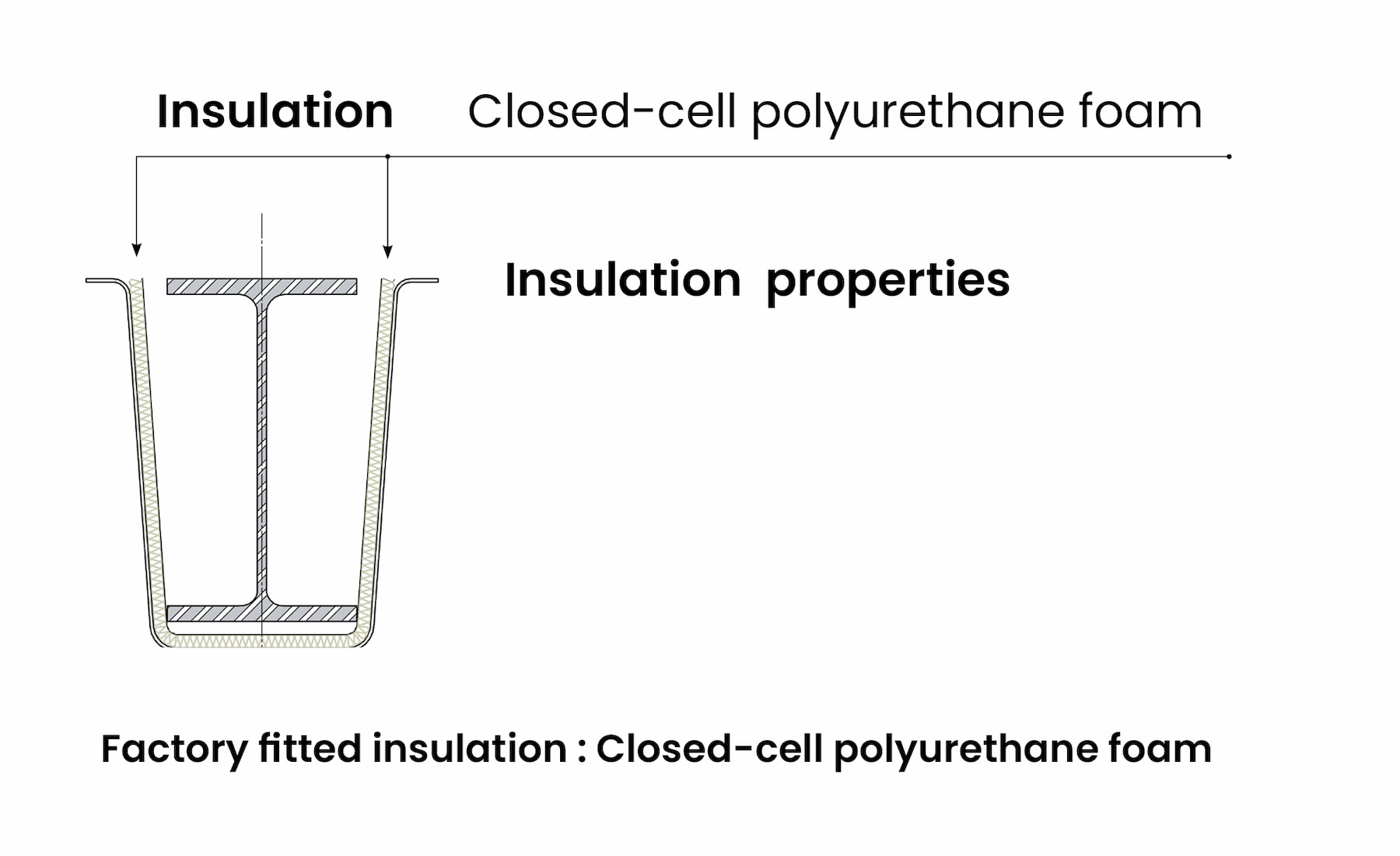

Arcoform Insulated Tapered Box cover





Density ft³ : 2 pounds M³ : 0.0566337 Kg
Thickness 1/2 - 2 inch 12.5 - 50 mm
Weight 1/2 inch = 0.28 lb/ft² 12.5 mm = 1.365 Kg/Sq M
R-value Per inch = R-6.56 Per 25.5 mm = R-6.56

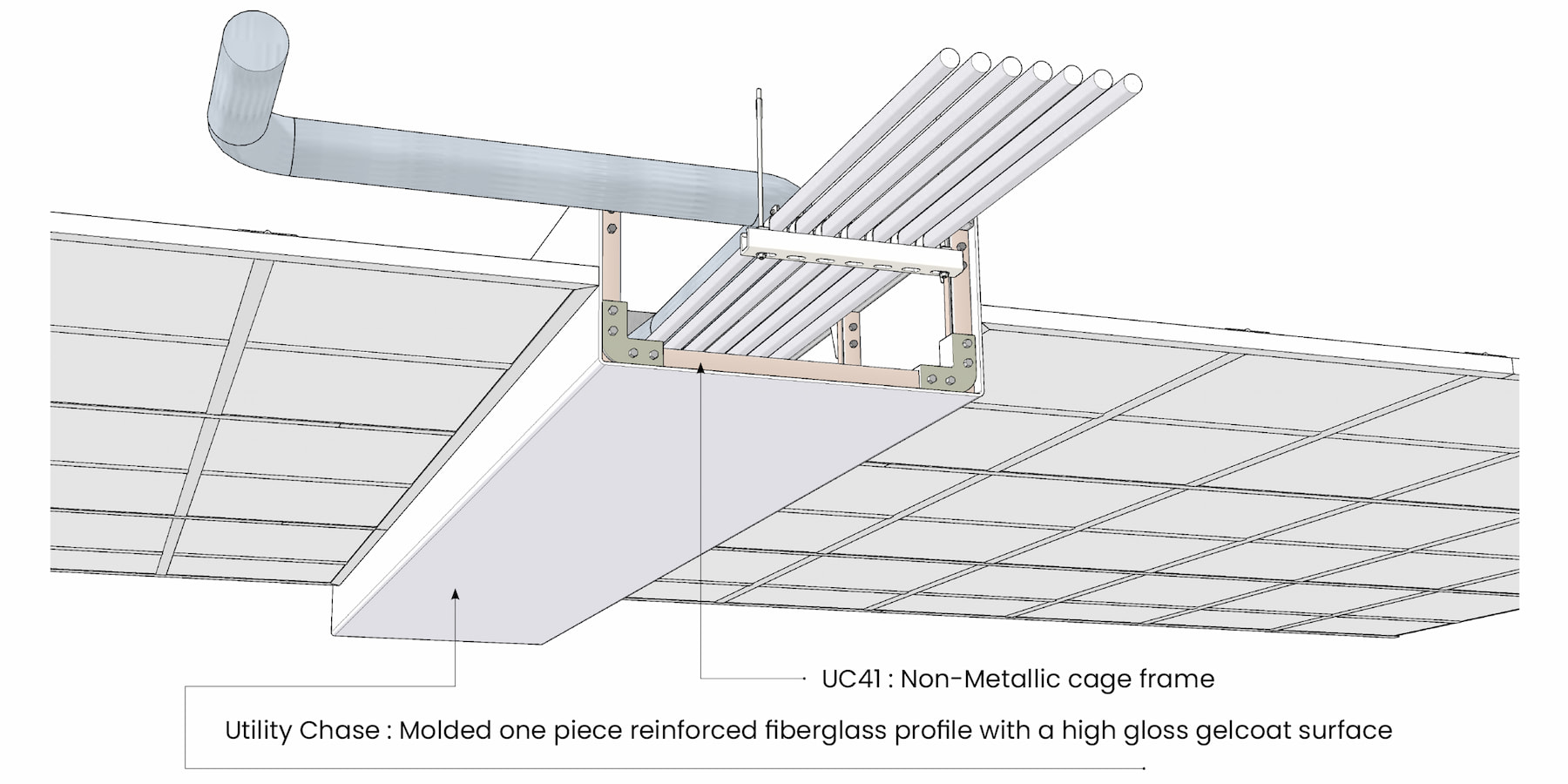

Arcoform Shroud Chase detail

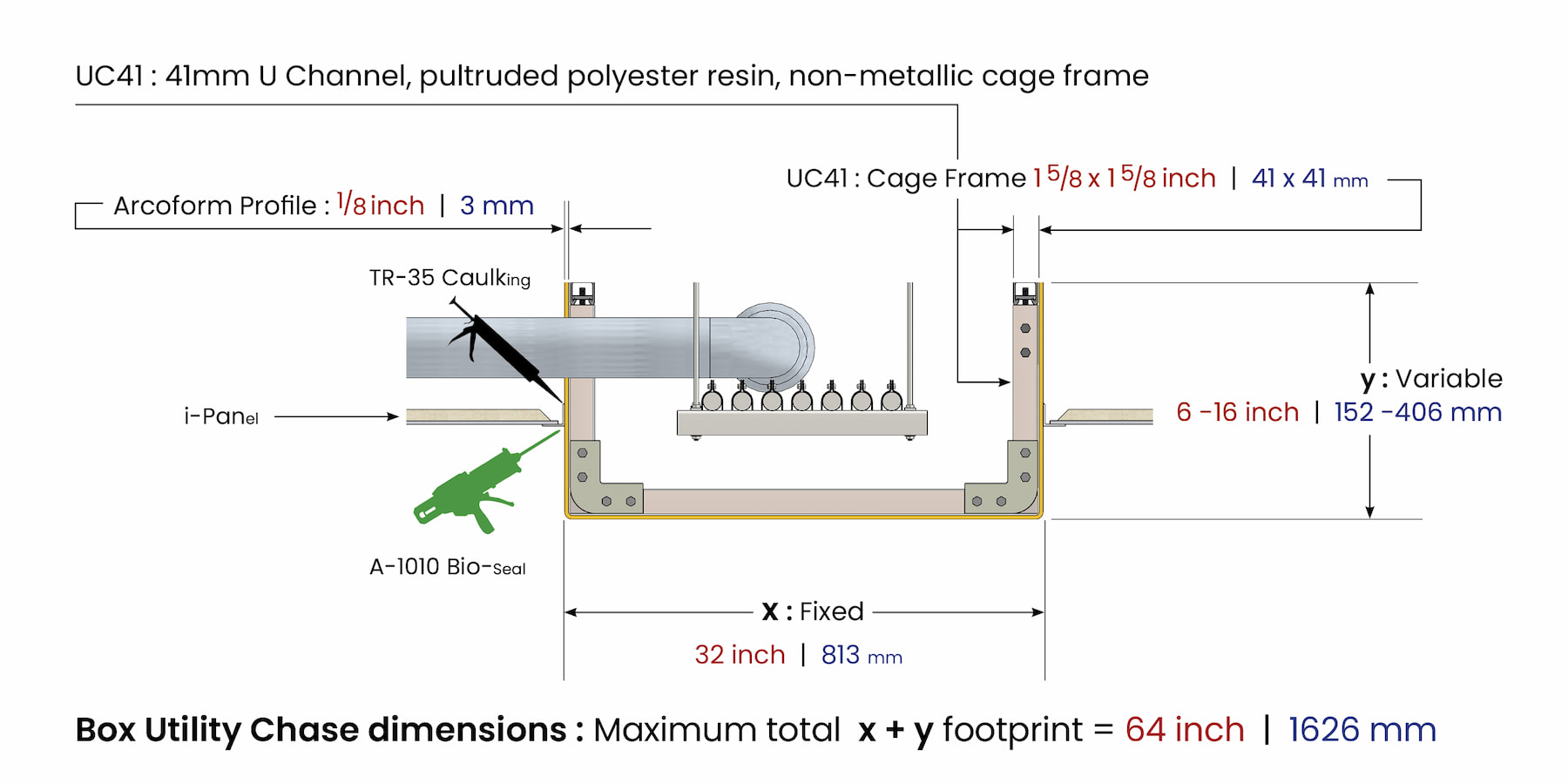

Arcoform Shroud Chase dimensions inclosed MEPs



Width: X fixed Height: Y variable Profile wall thickness Length manufactured
32 inch 813 mm 6 - 16 inch 152 - 406 mm 1/8 inch 3 mm 12 feet 3658 mm

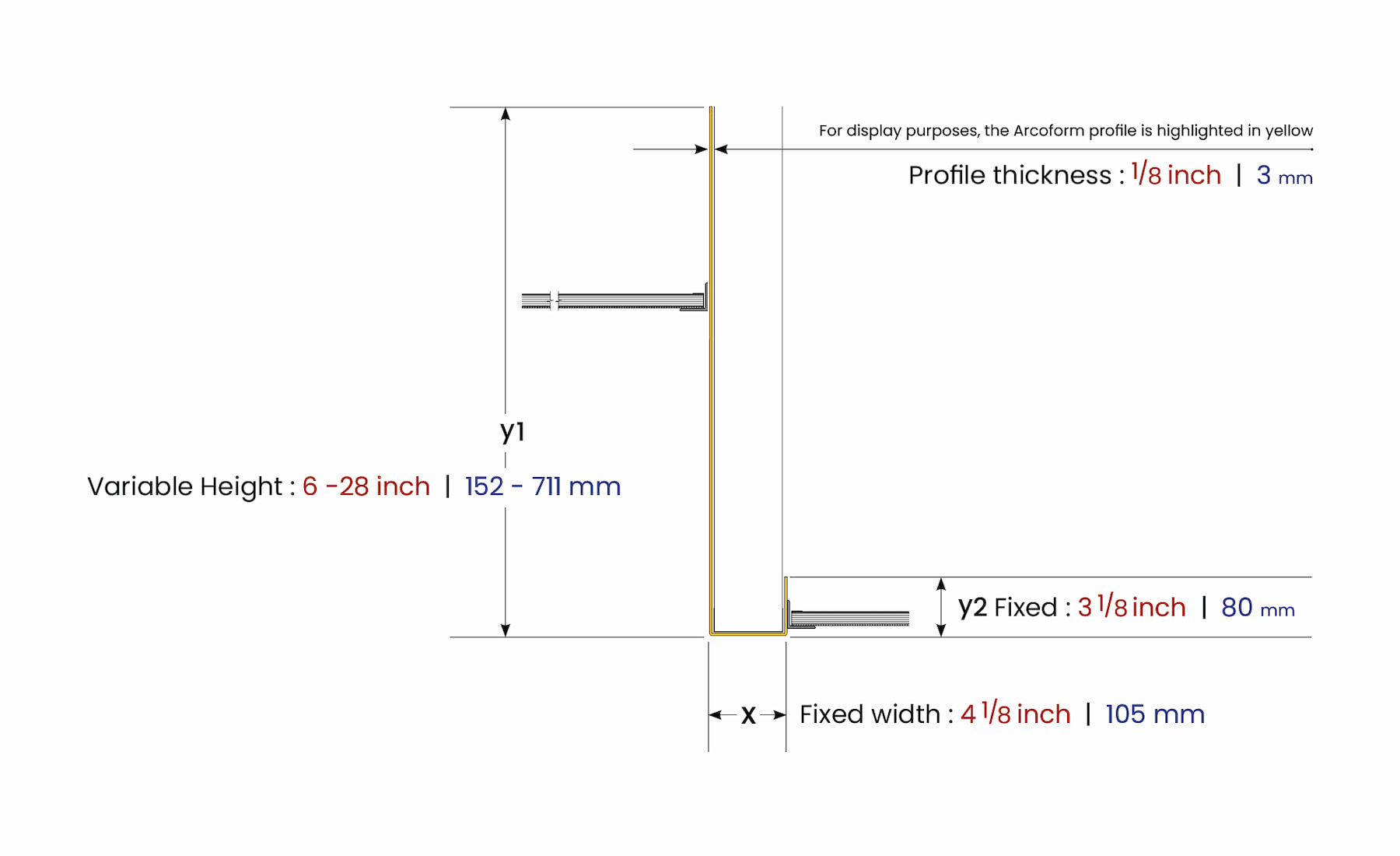

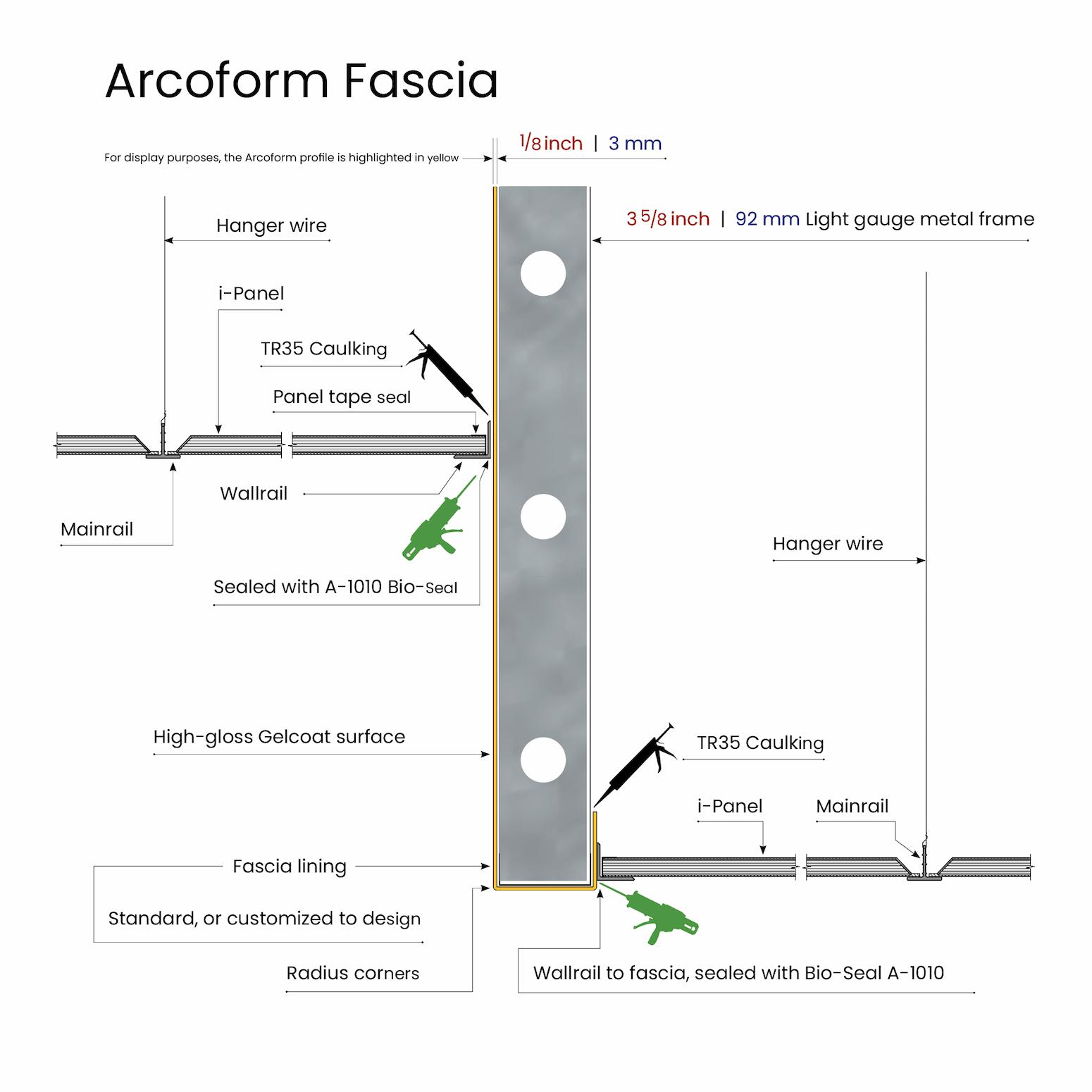

Arcoform Fascia Shroud Chase dimensions Arcoform Fascia Shroud Chase dimensions detail
Width X Fixed Height Y1 Variable Height Y2 Fixed Length manufactured
4 1/8 inch 105 mm 6 - 28 inch 152 - 711 mm 3 1/8 inch 80 mm 12 feet 3658 mm

Weight : 1 Lb/Sq foot   |   4.88 Kg/Sq Meter Flange : Straight cut Joint : Flush butt joint

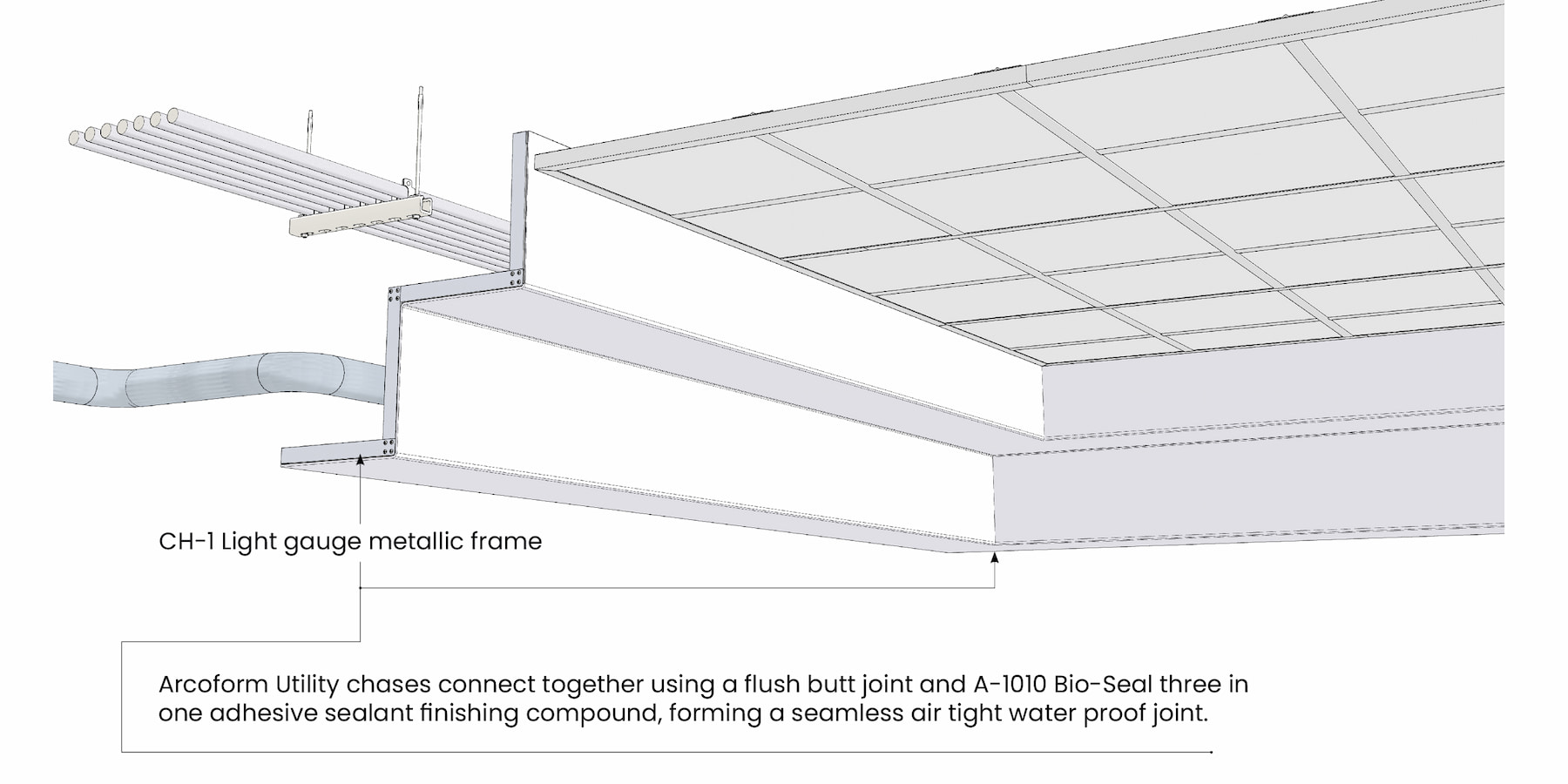

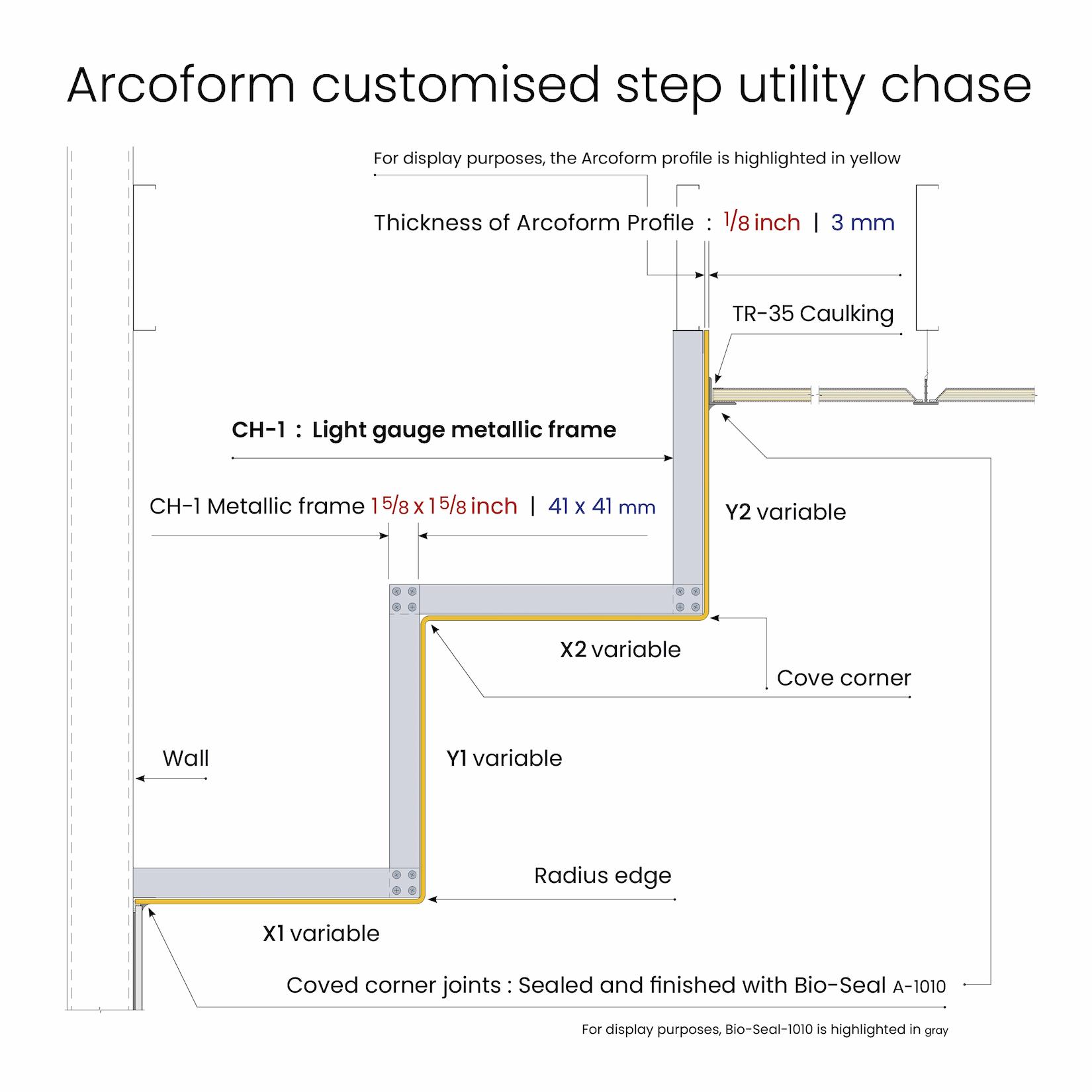

Arcoform ßtep Shroud Chase dimensions Arcoform Step Shroud Chase dimensions, profile
Standard fitted Length : 12 feet | 3658 mm (includes flange 1 1/2 inch | 38 mm)
X1 - Y1. X2 - Y2. : Asymmetric variable dimensions as to customized specification
Step Utility Chase Profiles : Flush Butt jointed



Having a customized Arcoform profile is sometimes the only option. Please contact Arcoplast for more information





Description Test Result
Arcoplast cleanability & stain resistance ISFA 2-01/td Pass
Arcoplast surface and sealant chemical compatibility ASTM D 1308-02 Pass
Arcoplast surface and sealant chemical compatibility ISO 2812-4 Pass
Chlorine dioxide decontamination procedure Coloration Pass
Formaldehyde gas decontamination procedure Coloration Pass
Hydrogen peroxide vapor decontamination procedure Coloration Pass
Exposure cycles UV test Pass



Description : Fire and Smoke development Test Result
On surface burning characteristics (USA) ASTM E-84 0-25 FS - 0-450 SD
On surface burning characteristics (Canada) UL S-102 18.9 FS - 634 SD



Description : Surface properties Test Result
The action of microorganism resistance to fungi and bacteria ISO 846 Pass
Degree of surface disfigurement by fungal or algal growth, soil or dirt accumulation ASTM D 3274 Pass
Resistance to growth of mold on surface ASTM D 3273 Pass



Description : Physical properties Test Results
Barcol hardness ASTM D 2583 Ave 46.3
Compressive strength properties ASTM D 695-02A 17506.7 (PSI)
Flexural properties reinforced plastics ASTM D 790-03 27753.3 (PSI)
Tensile properties ASTM D 638-03 10659 (PSI)
Description Thermal - Vapor Test Results
Coefficient of thermal expansion ASTM E 228 58.5 L (-30ºC) (mm)
Coefficient of thermal expansion ASTM E 228 58.89 L (30ºC) (mm)
Thermal conductivity ASTM C 518-17 0.15 BTU in/ft-h-degree F (0.022 W/m-degree C)
Thermal resistance ASTM C 518-17 R : 6.56 per inch of foam
Water vapor transmission ASTM E 96-05 0.01



Resistant to vermin and rodents, has no nutritional value



Information provided in this document is based on tests believed to be reliable. Values represent typical values. Not all tests are run on each lot of material produced.



Certification Description : Arcoplast Doors Result
Leef Logo
Logistical economic environmental footprint ✓
Compliance Standards ✔
Compliant BSL-2 ✔
Compliant CL 2 ✔
Compliant PC2 ✔
Compliant Canada agriculture ✔
Compliant CDC ✔
Compliant FDA ✔
Compliant NIAD ✔
Compliant NIH ✔
Compliant USDA ✔
CSI Product Guide specification written according to CSI 3part format ✔
VOC Report V1NNW211GC-Rev.2-(S1) : After 72 hours no VOCs detected ✔
Description Imperial Metric
Height 6ft 11 inch 2108 mm
Width standard door 35 5/8 inch | weight 65lbs 905 mm | 29.48Kgs
Width wide door 47 5/8 inch | 100lbs 1210 mm | 45.3592Kgs
Thickness 1-3/4 inch 45 mm
Stiles. Flat steel both edges 1/8” x 1-1/2” x 6’11” 1.57 mm x 38.1 mm x 2108.2 mm
Vision light* (square) 18 inch x 18 inch 457 mm x 457 mm

Core : Rigid closed cell polyisocyanurate foam, compressive strength : 70 lb/in2, R – 5.7/in.

Finish facing & edges : Fully sealed,impact resistant, hard, highgloss, chemical and moisture resistant, seamless Gelcoat surface applied over a polymer resin, made up of two layers of reinforced 1-1/2 oz fiberglass mat.

Vision light* (square) : One of three options, pane fitted with an extruded rubber gasket : Safety glass, Polycarbonate or Acrylic.



INSULATED FIBERGLASS GELCOAT DOOR : FRP DOCUMENT



Description Result
Food and Beverage Industry ✓
Extreme moisture conditions ✓
Harsh environmental conditions ✓
High impact traffic areas ✓



Certification Description : Arcoplast Access & Service Hatches Result
Leef Logo
Logistical economic environmental footprint ✓
Access & Service Hatch Dimensions



Access Hatch Dimensions Service Hatch Dimensions
24 x 24 inches 609 x 609 mm 8 x 8 inches 203 x 203 mm
24 x 36 inches 609 x 915 mm 12 x 12 inches 305 x 305 mm
24 x 48 inches 609 x 1220 mm 16 x 16 inches 406 x 406 mm
24 x 60 inches 609 x 1525 mm 20 x 20 inches 508 x 508 mm



Certification Description : Glazing systems Result
Leef Logo
Logistical economic environmental footprint ✓
Perfect Flush Glazing

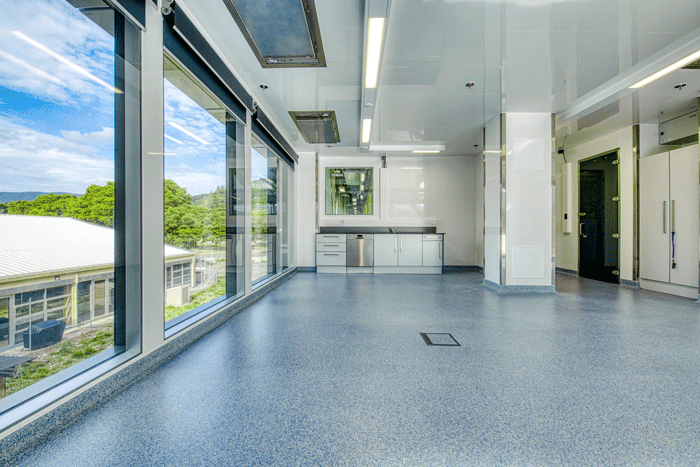

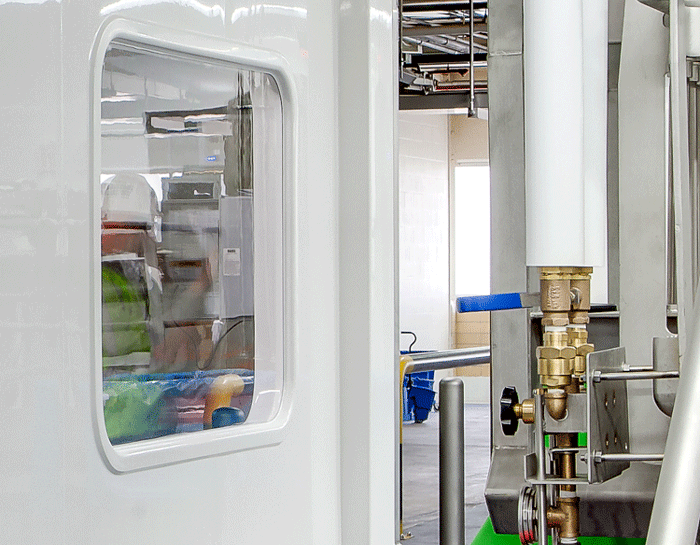

Glazing window
