| Certification | Description |
|---|---|
|
EPD number : SCS-EPD-09487 Category ISO 21930:2017 |
|
HPD Unique Identifier : 45699454976 Classification : Composite paneling 06 83 00 |
|
Living Building Challenge. LBC 4.0 |
|
Logistical economic environmental footprint |
| Compliance | Standards |
|---|---|
| Compliant | BSL-2 ABSL-3 BSL-3 BSL-3Ag BSL-4 |
| Compliant | CL 2 CL 3 CL 4 |
| Compliant | PC2 PC3 PC4 |
| Compliant | USP 797-800 |
| Compliant | Canada agriculture |
| Compliant | CDC |
| Compliant | FDA |
| Compliant | NIAD |
| Compliant | NIH |
| Compliant | USDA |
| CSI | Product Guide specification written according to CSI 3part format |
| NYC Building Toxicity | test MEA 64-96M, City of New York Department of Building |
| Seismic | Category A B C D E F : Please note, always consult local building authorities for specific regulations. |
| VOC | Report V1NNW211GC-Rev.4 (S3) : After 72 hours no VOCs detected |
| THICKNESS | 1/4 inch | |
|---|---|---|
| WIDTH | 4 ft | Tolerance +/- 1/16 inch |
| LENGTH | 3 - 16 ft | Tolerance +/- 1/2 inch |
| WEIGHT | 2.0 lbs / Sq. Ft | |
| End Cut | Square cut | - - - |
|---|---|---|
| Side Edge | Square cut | - - - |
| Joint System | Batten cover | Flush seam |

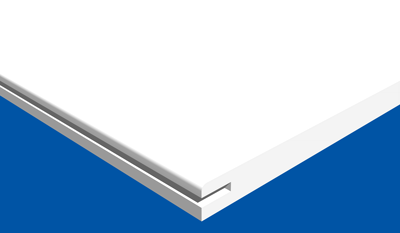

| THICKNESS | 3/8 inch | |
|---|---|---|
| WIDTH | 4 ft | Tolerance +/- 1/16 inch |
| LENGTH | 3 - 16 ft | Tolerance +/- 1/2 inch |
| WEIGHT | 3.5 lbs / Sq. Ft | |
| End Cut | Square cut | Kerf Groove | |
|---|---|---|---|
| Side Edge | Square cut | Kerf Groove | Eased side edge |
| Joint System | Batten cover | Flush seam | |

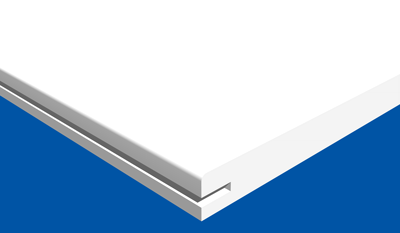

| THICKNESS | 1/2 inch | |
|---|---|---|
| WIDTH | 4 ft | Tolerance +/- 1/16 inch |
| LENGTH | 3 - 16 ft | Tolerance +/- 1/2 inch |
| WEIGHT | 4.4 lbs / Sq. Ft | |
| End Cut | Square cut | Kerf Groove | |
|---|---|---|---|
| Side Edge | Square cut | Kerf Groove | Eased side edge |
| Joint System | Batten cover | Flush seam | |

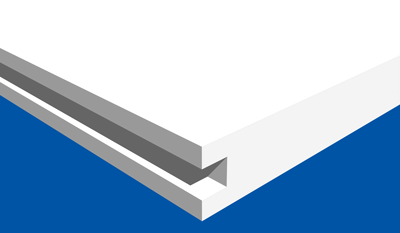

| THICKNESS | 3/4 in |
|---|---|
| WIDTH | 4 ft ••• tolerance +/- 1/16in |
| LENGTH | 3 - 16 ft ••• tolerance +/- 1/2in |
| WEIGHT | 6.3 lbs / Sq. Ft |
| End Cut | Square cut | Kerf Groove | |
|---|---|---|---|
| Side Edge | Square cut | Kerf Groove | Eased side edge |
| Joint System | Batten cover | Flush seam | |
| THICKNESS | 6.3 mm | |
|---|---|---|
| WIDTH | 1200 mm | Tolerance +/- 1.5 mm |
| LENGTH | 900 - 4875 mm | Tolerance 12.5 mm |
| WEIGHT | 9.7 Kg/M2 | |
| End Cut | Square cut | - - - |
|---|---|---|
| Side Edge | Square cut | - - - |
| Joint System | Batten cover | Flush seam |
| THICKNESS | 9.5 mm | |
|---|---|---|
| WIDTH | 1200 mm | Tolerance +/- 1.5 mm |
| LENGTH | 900 - 4875 mm | Tolerance 12.5 mm |
| WEIGHT | 17.09 Kg/M2 | |
| End Cut | Square cut | Kerf Groove | |
|---|---|---|---|
| Side Edge | Square cut | Kerf Groove | Eased side edge |
| Joint System | Batten cover | Flush seam | |
| THICKNESS | 12.5 mm | |
|---|---|---|
| WIDTH | 1200 mm | Tolerance +/- 1.5 mm |
| LENGTH | 900 - 4875 mm | Tolerance 12.5 mm |
| WEIGHT | 21.48 Kg/M2 | |
| End Cut | Square cut | Kerf Groove | |
|---|---|---|---|
| Side Edge | Square cut | Kerf Groove | Eased side edge |
| Joint System | Batten cover | Flush seam | |
| THICKNESS | 19 mm | |
|---|---|---|
| WIDTH | 1200 mm | Tolerance +/- 1.5 mm |
| LENGTH | 900 - 4875 mm | Tolerance 12.5 mm |
| WEIGHT | 30.2 Kg/M2 | |
| End Cut | Square cut | Kerf Groove | |
|---|---|---|---|
| Side Edge | Square cut | Kerf Groove | Eased side edge |
| Joint System | Batten cover | Flush seam | |
Detail applicable for both walls and ceilings
Browse PDF
Applicable for both walls and ceilings
Browse PDF
Applicable for both walls and ceilings
Browse PDF
Applicable for walls and ceilings
Browse PDF
Applicable for walls and ceilings
Browse PDF
Applicable for walls and ceilings
Browse PDF
Applicable for walls and ceilings
Browse PDF
Applicable for walls and ceilings
Browse PDF
Applicable for walls and ceilings
Browse PDF
Applicable for both walls and ceilings
Browse PDF
BARRIER TESTS CONDUCTED USING 12.5mm ACRYLOYL
| Result | Test | Description |
|---|---|---|
| Pass | ASME N510 | Air pressure decay nuclear air treatment systems test |
| Pass | MEP test | Air pressure decay test on accessories relating to MEP test |
| Pass | Test | Air pressure decay test on expansion joint & electrical face plates test |
| Pass | Test | Air pressure decay test on screw penetrations test |
| Pass | BSL-3, BSL-4 | Air pressure decay test small chamber BSL-3, BSL-4 test |
| Pass | Test | Supplemental helium leak testing |
| Pass | Report | Window panel pressure decay test report |
COLOR SURFACE TESTS CONDUCTED USING 12.5mm ACRYLOYL
| Result | Test | Description |
|---|---|---|
| Pass | ISFA 2-01 | Arcoplast cleanability & stain resistance |
| Pass | ASTM D 1308-02 | Arcoplast surface and sealant chemical compatibility |
| Pass | ISO 2812-4 | Arcoplast surface and sealant chemical compatibility |
| Pass | Coloration | Chlorine dioxide decontamination procedure |
| Pass | Coloration | Formaldehyde gas decontamination procedure |
| Pass | Coloration | Hydrogen peroxide vapor decontamination procedure |
| Pass | UV test | Exposure cycles |
FIRE & SMOKE TESTS CONDUCTED USING 12.5mm ACRYLOY
| Result | Test | Description |
|---|---|---|
| B-s1-d0 | EN 13501-1 – Europe, Asia | Classification of reaction to fire performance, in accordance with – Europe, Asia |
| Pass | ISO 9705 Annex B | Full scale room fire test |
| MEA 64-96-M | UPITT Protocol Toxicity Test | Measurement of acute lethality decomposition products |
| 10.8 FS - 6.1 SD | UL S-102 Test | On surface burning characteristics (Must be on full composite construction – Canada) |
| 10 FS - 0 SD | ASTM E-84 Test | On surface burning characteristics (Must be on full composite construction – USA) |
| Pass | UL 94 – 5VA 500W | Vertical burning test |
MICROORGANISM TESTS : ACRYLOYL PANELS
| Arcoplast Wall and Ceiling Systems | Test : ISO 846 |
|---|---|
|
SCOPE : International Standard ISO 846 is used to determine the deterioration of plastics due to action microorganisms. |
|
|
CONCLUSION : Resist to fungi and bacteria, does not support microbial growth. Results obtained conclude, test sample does not provide any nutrition for bacteria and fungi. Acryloyl panel surfaces (face and back side) resist fungi and bacteria and does not support microbial growth. |
|
| Arcoplast Wall and Ceiling Systems | Test: ASTM D3273-00 |
SCOPE : To test the resistance of test samples to mold growth. |
|---|---|
|
CONCLUSION : Products tested were effective in preventing fungal growth, were found to be resistant to fungi tested. Acryloyl panel surfaces (face and back side) were effective in preventing fungal growth. All samples had an ASTM D3273 rating of 10. |
|
| Arcoplast Wall and Ceiling Systems | Test: ASTM D3274-09 |
|---|---|
|
CONCLUSION : Products tested showed 0% coverage of fungal growth. All samples had ASTM D3274 rating of 10. |
|
PHYSICAL TESTS: ACRYLOYL 12.5 MM
| Result | Test | Description |
|---|---|---|
| Pass | MEA 414-04-M | City of New York Department of Buildings |
| Pass | US FDA 21 CFR 177.2600 | Determination of Extractives Residue according to US FDA |
| Pass | LBC 3.1 | Living Building Challenge 3.1 |
| Pass | CSI 3-Part Format | Product Guide Specification Written According To CSI 3 |
| Pass | Compliant test | USDA, FDA, NIH, CDC, NIAID, CANADA AGRICULTURE Compliant |
SURFACE TESTS CONDUCTED USING 12.5mm ACRYLOYL
| Result | Test | Description |
|---|---|---|
| Pass | ISFA 2-01 | Arcoplast cleanability & stain resistance |
| Pass | ASTM D 1308-02 | Arcoplast surface and sealant chemical compatibility |
| Pass | ISO 2812-4 | Arcoplast surface and sealant chemical compatibility |
| Pass | Coloration | Chlorine dioxide decontamination procedure |
| Pass | Coloration | Formaldehyde gas decontamination procedure |
| Pass | Coloration | Hydrogen peroxide vapor decontamination procedure |
| Pass | UV test | Exposure cycles |
SURFACE TOPOGRAPHY
| Surface Topography |
Acryloyl |
|---|---|
Ra* : Roughness Average |
0.020 μm |
Rq : Roughness, root mean square average |
0.03 μm |
Rz : Average Maximum Height of the Profile |
0.16 μm |
Rp : Maximum Profile Peak Height |
0.09 μm |
Rv : Maximum Profile Valley Depth |
0.07 μm |
Rt : Maximum Height of the Profile |
0.21 μm |
