Certification Description
Leef Logo
Logistical economic environmental footprint
Compliance Standards
Compliant BSL-2, ABSL-3, BSL-3, BSL-3Ag
Compliant CL 2, CL 3
Compliant PC2, PC3
Compliant USP 797-800
Compliant Canada agriculture
Compliant CDC : BMBL 6th edition
Compliant FDA
Compliant NIAD
Compliant NIH
Compliant USDA
CSI Product Guide specification written according to CSI 3part format
NYC Building Toxicity test MEA 64-96M, City of New York Department of Building
Seismic Category A B : Please note, always consult local building authorities for specific regulations.
VOC Report V1NNW211GC-Rev-3(S2) : After 72 hours no VOCs detected
13/64 inch : Lining panel

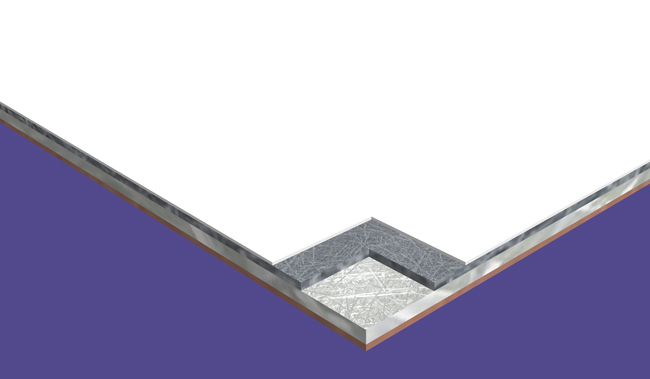

Arcoplast.GFRMC 13/64 inch wall ceiling panel system



THICKNESS 13/64 in
WIDTH 48in - 108in
LENGHT up to 40 ft   •••   tolerance +/- 1/8in
WEIGHT 1.09 lbs / Sq. Ft



Joint Profiles
End Cut Square cut - - -
Side Edge Square cut - - -
Joint System Batten cover Flush seam
Application : Wall and ceiling cladding system for new or modernizing existing cleanrooms and, mini/ mobile/ modular labs

Dry Build : Direct attachment to framing or substrate, using back plates and A-2020 structural adhesive

Rated : BSL-2, BSL-3, ABSL-3, BSL-3Ag







3/8 inch : High containment panel

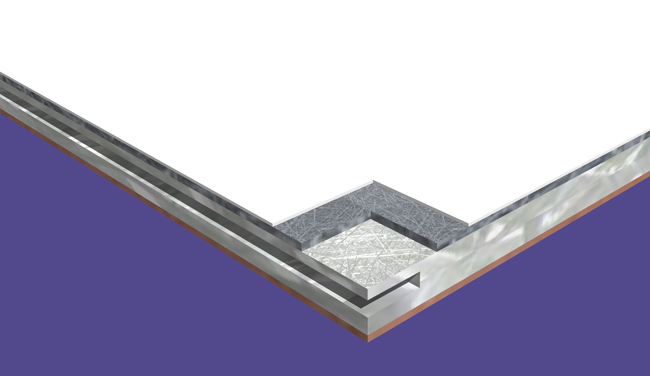

Arcoplast.GFRMC 9.5mm wall ceiling panel system



THICKNESS 3/8 in
WIDTH 48in - 108in
LENGHT up to 40 ft   •••   tolerance +/- 1/8in
WEIGHT 1.4 lbs / Sq. Ft



Joint Profiles
End Cut Square cut Special order : Kerf Groove
Side Edge Square cut Kerf Groove
Joint System Flush seam Mechanical spline, A-2020 structural adhesive
Applications : Cleanrooms, controlled environments, high containment facilities and, mini/ mobile/ modular labs

Dry Build : Direct attachment to framing or various substrates using splines and A-2020 structural adhesive

Rated : BSL-2, BSL-3, ABSL-3, BSL-3Ag







GFRMC 5 mm : Lining panel



Arcoplast.GFRMC 5mm wall ceiling panel system



THICKNESS 5 mm
WIDTH 1.2 - 2.74 meter
LENGHT 1.2 - 12.2 meter   •••   tolerance +/- 3 mm
WEIGHT 5.3 Kg/Sq.m



Joint Profiles
End Cut Square cut - - -
Side Edge Square cut - - -
Joint System Batten cover Flush seam
Application :Wall and ceiling cladding system for new, or modernizing existing cleanrooms and, mini/ mobile/ modular labs

Dry Build : Direct attachment to framing or substrate, using back plates and A-2020 structural adhesive

Rated : BSL-2, BSL-3, ABSL-3, BSL-3Ag







GFRMC 9.5 mm : High containment panel



Arcoplast.GFRMC 9.5mm wall ceiling panel system



THICKNESS 9.5 mm
WIDTH 1.2 - 2.74 meter
LENGHT 1.2 - 12.2 meter   •••   tolerance +/- 3 mm
WEIGHT 6.1 Kg/Sq.m



Joint Profiles
End Cut Square cut Special order : Kerf Groove
Side Edge Square cut Kerf Groove
Joint System Flush seam Mechanical spline, A-2020 structural adhesive
Applications : Cleanrooms, controlled environments, high containment facilities and, mini/ mobile/ modular labs

Dry Build : Direct attachment to framing or various substrates using splines and A-2020 structural adhesive

Rated : BSL-2, BSL-3, ABSL-3, BSL-3Ag




GFRMC PANELS : 5MM


WALLS & CEILINGS : Attached to framing
WALLS & CEILINGS : Attached to substrate

Applicable for walls or ceilings

Browse PDF

Applicable for walls or ceilings

Browse PDF

Applicable for walls or ceilings

Browse PDF



GFRMC PANELS: 9.5MM



BASE. WALL TO FLOOR : Attached to framing

BASE. WALL TO FLOOR : Attached to substrate



CONNECTING. PANEL TO PANEL : Attached to framing

Applicable for Ceiling or Wall panels.

Browse PDF
CONNECTING. PANEL TO PANEL : Attached to substrate

Applicable for Ceiling or Wall panels.

Browse PDF

Applicable for Ceiling or Wall panels.

Browse PDF

Applicable for Ceiling or Wall panel installations.

Browse PDF



CORNER. WALL TO WALL : Attached to framing
CORNER. WALL TO WALL : Attached to substrate



CORNER. WALL TO CEILING : Attached to framing
CORNER. WALL TO CEILING : Attached to substrate






DOORS : GLAZING : PENETRATIONS : WINDOWS


DOOR FRAME
HOUSING WINDOW SYSTEMS



PENETRATIONS
WINDOW GLAZING SYSTEMS
BARRIER
COLOR



FIRE & SMOKE

MECHANICAL TEST



SOUND
STRENGTH



SURFACE



BARRIER TESTS : 13/64in / 5mm GFRMC


Description Onsite test Result
Air pressure decay test on accessories relating to MEP Onsite test Pass
Air pressure decay test small chamber Onsite test Pass
Air pressure decay test on electrical and monitoring face plates Onsite test Pass
Air pressure decay test Arcoplast cGMP window housing Onsite test Pass
Air pressure decay test on screw penetrations Onsite test Pass



COLORATION FASTNESS TESTS : 13/64in / 5mm GFRMC


Description Test Result
Coloration test on formaldehyde gas decontamination process Coloration Pass
Coloration test on hydrogen peroxide vapor decontamination process Coloration Pass
Coloration test on chloride dioxide vapor decontamination process Coloration Pass
Arcoplast surface and sealant chemical compatibility tests ISO 2812-4 Pass
Arcoplast surface and sealant chemical compatibility tests ASTM D-1308-02 Pass
Arcoplast clean ability and stain resistance ISFA 2-01 Pass



FIRE & SMOKE TESTS : 13/64in / 5mm GFRMC


Description Test Result
Surface burning characteristics of building materials ASTM E-84 Class A–20 FS–SD-300



PHYSICAL TESTS : 13/64in / 5mm GFRMC


Description Test Result
Barcol test indentation hardness ASTM-D2583.7 51
Modulus compressive ASTM-D695-15 0.595 (Psi)
Modulus flexural ASTM – D790-15 613749.6 (psi)
Modulus tensile ASTM – 638-14 103374.8 (psi)
Compressive strength ASTM-D695-15 5046.0 (PSI)
Flexural strength ASTM - D790-15 14469.9 (psi)
Tensile strength ASTM – 638-14 10100 (psi)



SURFACE PROPERTY TESTS: 13/64in / 5mm GFRMC


Description Test Result
Specular gloss test ASTM-D 523 Pass
Water Vapor transmission ASTM-E 96-05 Pass
Water absorption ASTM–D 570 (2HRS) Pass
Resistance to mold on surface ASTM–D 3273 Pass
Degree of surface disfigurement by fungal growth ASTM–D 3274 Pass
Resistance to bacteria ISO 8464-B-C Pass



SURFACE TOPOGRAPHY TESTS :


Surface Topography
GFRMC
Ra* : Roughness Average
0.01 μm
Rq : Roughness, root mean square average
0.02 μm
Rz : Average Maximum Height of the Profile
0.013 μm
Rp : Maximum Profile Peak Height
0.07 μm
Rv : Maximum Profile Valley Depth
0.06 μm
Rt : Maximum Height of the Profile
0.18 μm
